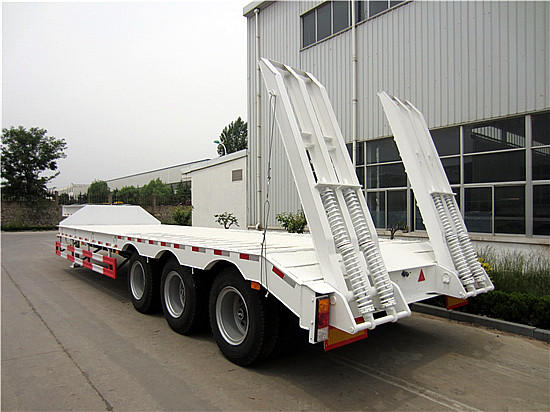

Sinotruk howo 3 Axles Low-Bed Semi-Trailer 40 Ton

3 Axles Low-Bed Semi-Trailer 40 Ton
Item	Standard specification
Gross Weight	About 11.5 tons
Outer side dimension(mm)	12500mm2700mm1250mm
Loading Capacity (Ton)	60 ton
AXLES	FUWA 13 T /PER , 3 AXLES
Tire	10.00R20/ 11.00R20 12pieces
Rim	7.5/8.25 12pieces
Suspension	mechanical suspension
Spring leaf	10 pieces or intensify
King pin	3.5″
Support leg	Manual,two
Ladder	A pair of ladder (Manhand control )
Main beam	Height: 500mm, upper plate is 18mm, middle plate is 8mm, down plate is 1 8mm side beam is 20#
Platform	5mm diamond platform
Brake chamber	4 double and 2 single chambers
Valve	Standard
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m0.5m0.5m
