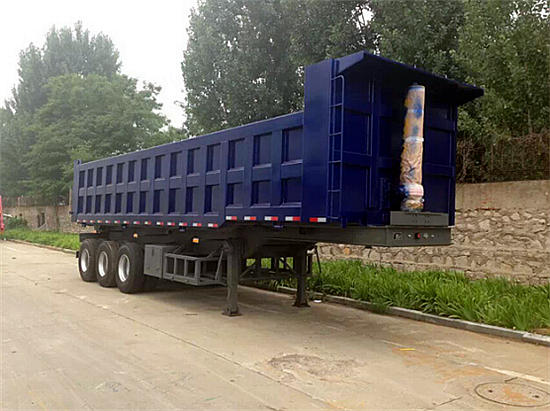

Sinotruk howo Rear Dump Semi-trailer 40Ton

Rear Dump Semi-trailer 40Ton
Tipper Semi-Trailer (40T)
Tare Weight	11000kgs
Pay Load	29000kgs
Total Weight	40000Kgs
Overall Length	9300mm
Overall Width	2465mm
Overall Height	3726mm
Wheel track	1840mm
Wheelbase	4680mm+1310mm+1310mm
DUMPER BODY
Volume	23m3
Inner dimensions (L x W x H):	8400mmx2300mmx1160mm
Floor	8mm thickness
Side wall	6mm thickness
Front wall	8mm thickness
SPECIFICATION
Main Frame	Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height, Top Flange 16mm,width 140mm; Middle Flange 8mm ;Bottom Flange 20mm,width 140mm
Hydraulic system	One set of HYVA FC191-5-06180 cylinder
Axle	Three Units of BPW 12Ton axle (optional for BPW copy or American style)
Suspension	A couple of FUWA (brand) mechanical tri-axle suspension, optional for air suspension
Leaf Spring	Six sets of reliable local brand, 8-piece leaf spring,16x90mm
King Pin	One unit of 90# standard kingpin
Landing Gear	Two-speed ,manual operation, heavy duty landing gear
Wheel Rim	13 units of 8.25R22.5 rims
Tyre	13 units of 11R22.5 tubeless tyre
Pneumatic Braking System	Two unit of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber , two unit of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector.
Electrical System	One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; two sets of reliable ,local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of 6-core standard Cable.
Painting	Sand blasting before painting; one coats of primer, anti corrosion; two coat of finish painting; color advised by client
Accessory	One box with a set of standard trailer tool

Sinotruk howo Rear Dump Semi-trailer 40Ton
