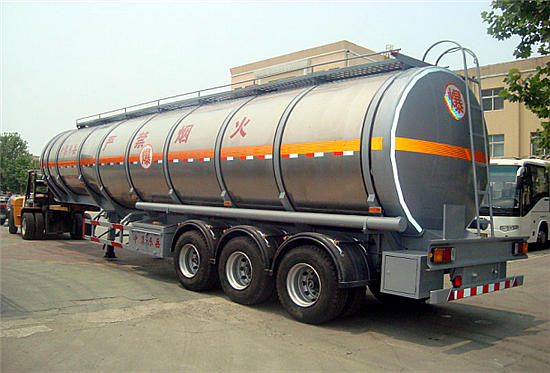

Aluminum Fuel Tank Semi-trailer 36m³

Type	36m³ Aluminum Fuel Tank Semi-trailer
Overall dimension	Length	11800mm	Tank material	Aluminum alloy
	Width	2498mm	Tyres	Type	11.00R20
	Height	3850mm	Tyres	Numb	12
	Height	3850mm	King pin	90mm
Capacity	L	36000	Chambers	2 independent chambers
Laden weight	kg	35000	Axle	number	3
Curb weight	kg	7000		Brand	FUWA 13T
Rear overhang	mm	1400		Receptacle	7ways(wire harness)
Wheel base	mm	6000+1350+1350		Lamp	Tail,side,bake lamp
Tank body	Effective capacity	36000L	Others	1.Lateral and rear sides with retro-reflective markings
	Thickness	6mm		2.Aluminum ladder
	Length	11000mm		3.Tool box
	Width	2498mm		4.Spare tyre frame carrier
	Height	1980mm		5.28T Support leg
